SaintyCo

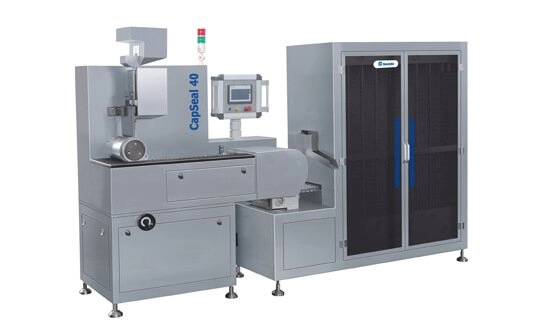

Enchedora e Seladora de Cápsulas Líquidas
Capsule Liquid Filling and Sealing Machine — equipamento farmacêutico da SaintyCo com suporte técnico especializado no Brasil.
Principais Características
- Up to 20,000 capsules/hour
- Operação totalmente automática
- Sistema PLC com IHM integrado
- Handles both oil or paste substance
- Designed for ease of use and high reliability, with the ability to quickly clean and change capsule sizes with optional parts
- Enclosed main turntable avoid dust getting into mechanical parts.
- Product integrity ensured with gentle handling of capsules before sealing and during the drying cycle
- Advanced Germany liquid pump
- Efficient capsule separation by means of vacuum. Safety interlocked guarding
- Alarm for door open
- Alarm for the lower level of capsule
- Conformidade cGMP
- CE Marked
- Suporte Técnico Brasileiro
- Qualificação Especializada Brasileira
Detalhes do Produto
| Item | Descrição |
|---|---|
| Oil Filling Head | 6 |
| Faixa de Aplicação | Capsule sizes: #00,#0, #1, #2, #3 Each size requires a set of capsule tooling. |
| Capacidade Máxima | 20,000 capsules/h (actual speed depends on formulation characteristics, filled volumn, capsule size .. etc) |
| The filling accuracy | ±1.5% |
| Energia Elétrica | 380V , 3 phase 5 wire , 50 HZ |
| Consumo de Energia | 3KW |

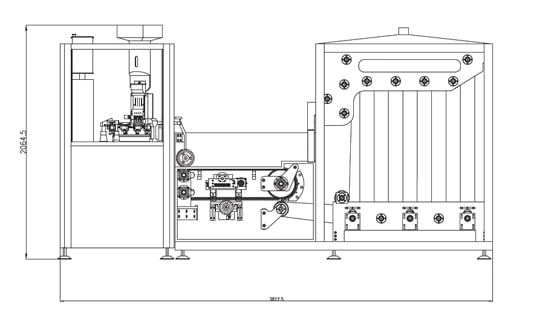

| Dimensão | 3800(L) x900(W) x1700(H) mm |
| Peso | 2300 Kg ( approx ) |
