SaintyCo
EcoTab-25D Compressora de Comprimidos
EcoTab-25D Tablet Press — compressora rotativa de comprimidos com alta produtividade, controle de peso em tempo real e conformidade cGMP.
Principais Características
- This is a special type of rotary tablet press, which is designed to produce round shape tablets, irregular, ring-shaped, or double-engraved tablets.
- It can not only produce single-layer tablets but also double layers tablets to satisfy the different demands of the customers.
- Conformidade GMP
- Estrutura em aço inoxidável
- The main machine and the operational control unit are separated.
- TheEcoTab-25D Multi-Functional Rotary Tablet Press is user-friendly in operations and maintenance.
- Sistema PLC com IHM integrado
- By adopting an inverter for speed adjustment, the adjustment of speed is step-less and reliable.
- Meanwhile, the motor with a frequency inverter has been selected to ensure constant power and speed adjustment with consistent torque, meeting the requirement on the torque within the stipulated range for the rotary speed of the press.
- Suporte Técnico Brasileiro
- Qualificação Especializada Brasileira
Detalhes do Produto
| Item | Descrição |
|---|---|

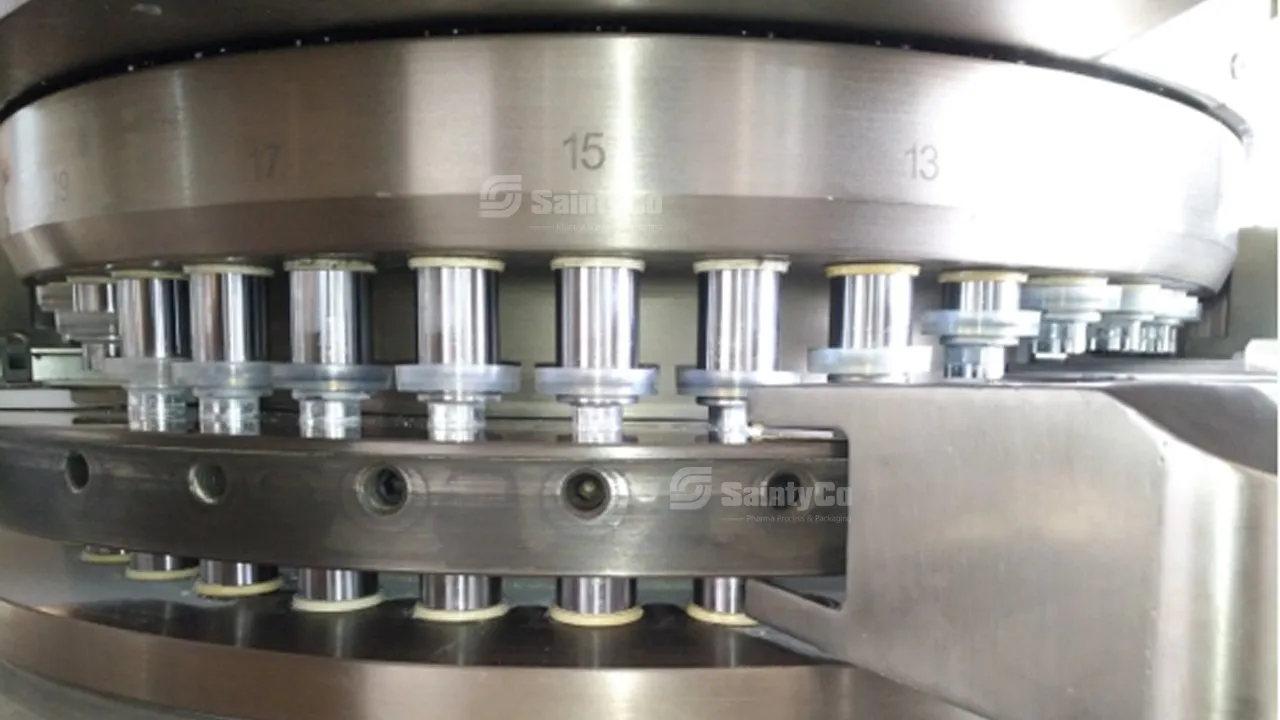

| Number of P/D | 25 units |
| Maximum Compression | 100 kN |
| Max. Thickness of Tablet | 10 mm |
| Maximum Depth of Filling | 25 mm |
| Maximum Diameter of Tablet | 25 mm |
| Velocidade | 10 – 35 RPM |
| Capacidade | 105,000 T/hr (single) 50,000-70,000 T/hr (double) |
| Power of Motor | 5.5 kW |
| Area to be Occupied | 1240 x 980 x 1650mm |
| Peso | 1950 kg |
