SaintyCo
EcoTab-25T Compressora de Comprimidos
EcoTab-25T Tablet Press — compressora rotativa de comprimidos com alta produtividade, controle de peso em tempo real e conformidade cGMP.
Principais Características
- It’s suitable to press round or shaped tablets with single, double, and triple layers.

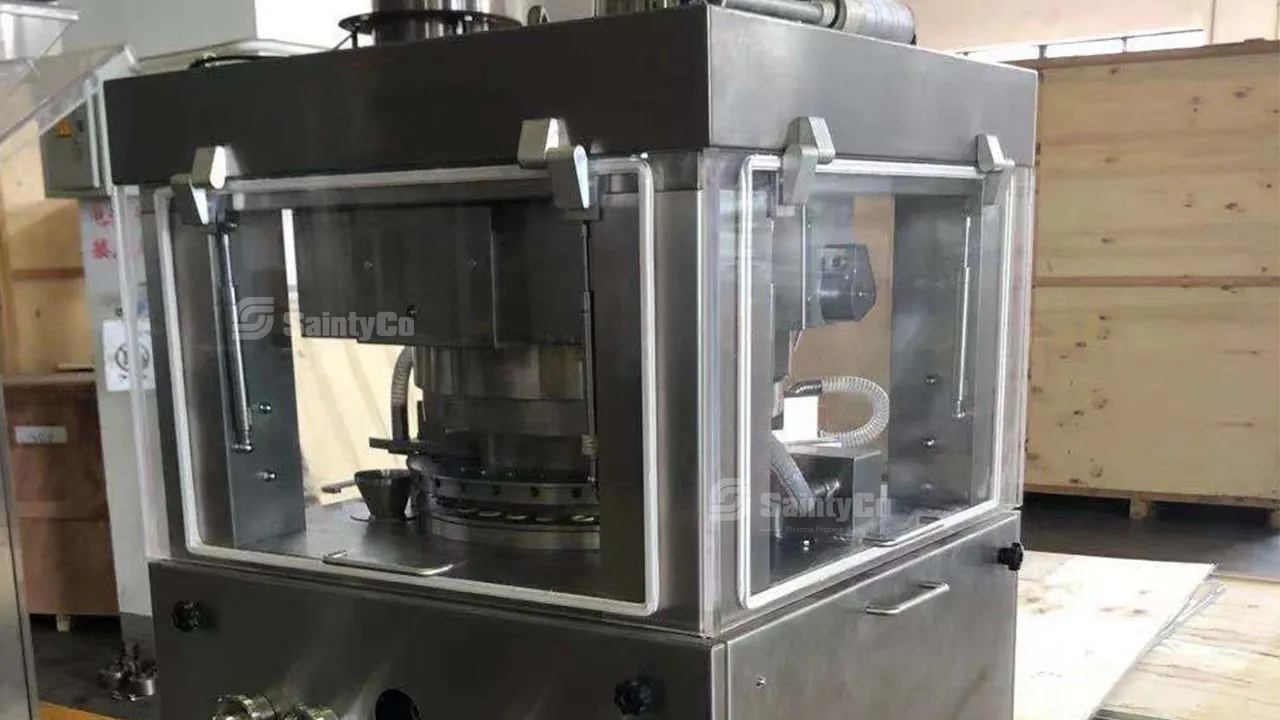

- It is equipped with organic glass and a visual window, a visual tablet state, all of the side plates can turn on and clear up and maintenance is easy.
- Conformidade GMP
- It is equipped with a variable frequency speed control device for electrical control, convenient operation, and steady running, it is safe and accurate.
- Operação totalmente automática

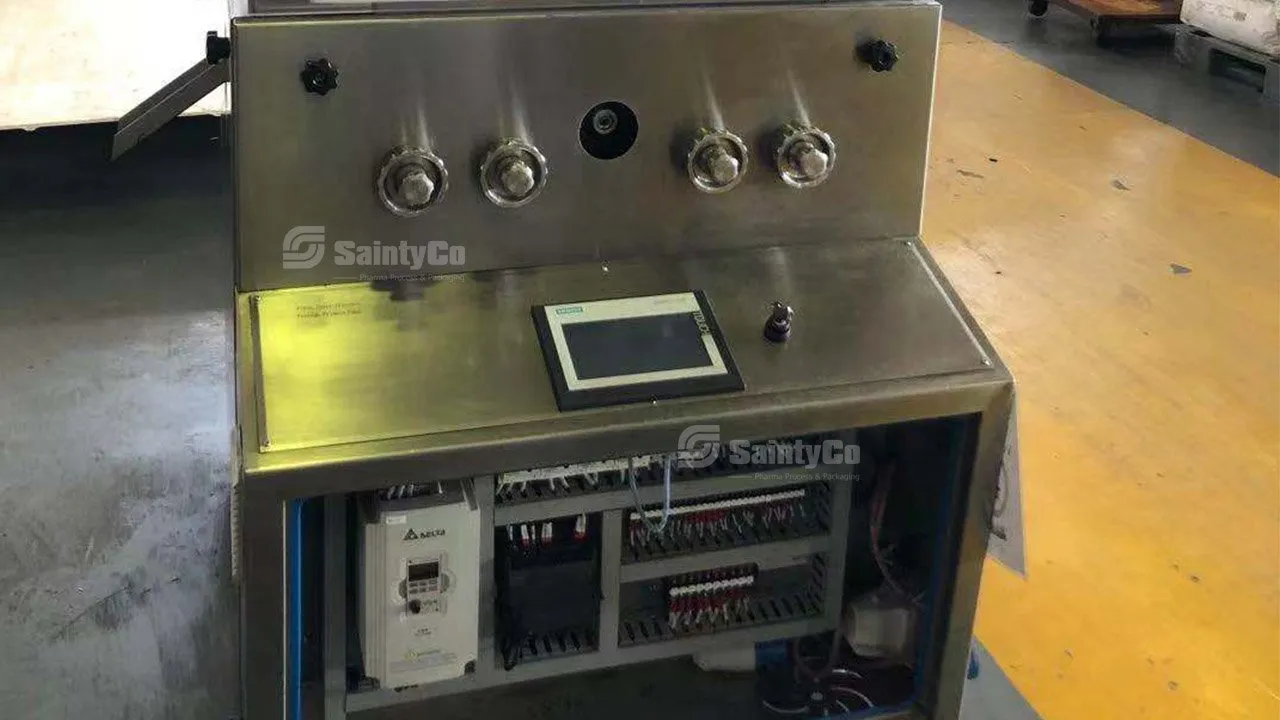

- It is mechanical and electrical integration and has a touch key and screen display.
- Sistema de lubrificação automático
- The transmission system is sealed on the main tank below, is a safe separation of independent components, also has no cross pollution, and transmission of infiltration in the oil pool, is easy to heat output, and also it is wearable.
- It is equipped with a powder absorbing device that can absorb indoor dust.
- Sistema PLC com IHM integrado
- Suporte Técnico Brasileiro
- Qualificação Especializada Brasileira
Detalhes do Produto
| Item | Descrição |
|---|---|
| Quantity of Punch & Die (set) | 25 |
| Pressão Máxima | 100 |
| Max. Dia. of Tablet (mm) | 25 |
| Max. Thickness of Tablet (mm) | 7 |
| Max. Depth of Filling (mm) | 15 |
| Velocidade | 15 |
| Capacidade | 22500 |
| Potência do Motor | 5.5 |
| Overall Size (mm) | 1240×980×1650 |
| Peso | 1950 |
