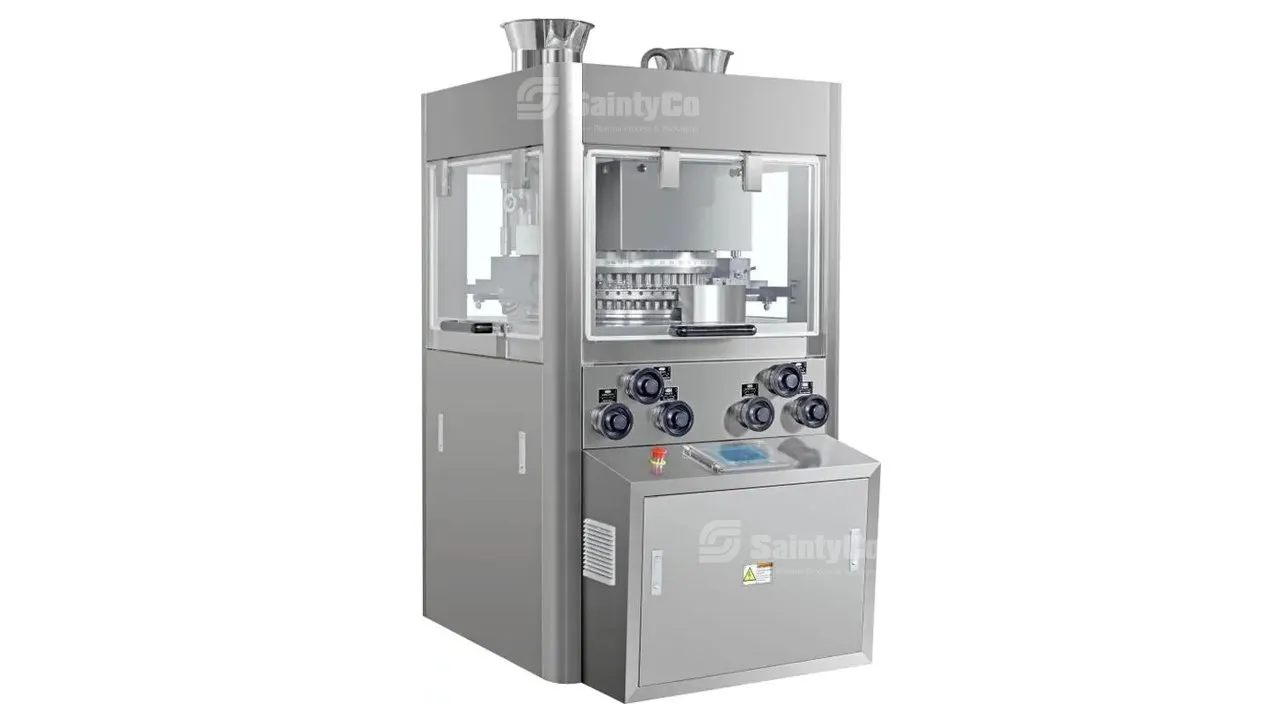

EcoTab-35 Compressora de Comprimidos
EcoTab-35 Tablet Press — compressora rotativa de comprimidos com alta produtividade, controle de peso em tempo real e conformidade cGMP.
Principais Características
- Conformidade GMP
- The high production efficiency satisfies large batch production demands.
- It’s equipped with a forced feeding device, and various types of impellors are suitable for different materials to ensure the feeding precision.
- The pre-pressure is consecutively adjustable which extends the pressing duration. The high-speed rotary tablet press runs smoothly pressing complex materials.
- The tablet pressing chamber is 360° dead angle, special installation is adopted for the tablet discharging mechanism, and the under guide track and under roller are convenient to operate, dismantle, and clean.
- With a special oil-resistance and dustproof system, the tablet press can effectively avoid mold blocking and provide its mold with an increased damping coefficient.
- An independent view window with high definition is designed for the high-speed rotary tablet press.
- Sistema PLC com IHM integrado
- Suporte Técnico Brasileiro
- Qualificação Especializada Brasileira
Detalhes do Produto
| Item | Descrição |
|---|---|
| Number of P/D | 35 units |
| Maximum Compression | 100 kN |
| Max. Thickness of Tablet | 7 mm |
| Maximum Depth of Filling | 18 mm |
| Maximum Diameter of Tablet | 25 mm |
| Velocidade | 45 RPM |
| Capacidade | 189,000 T/hr |
| Power of Motor | 11 kW |
| Area to be Occupied | 1290 x 1170x 1900mm |
| Peso | 3500 kg |
