SaintyCo

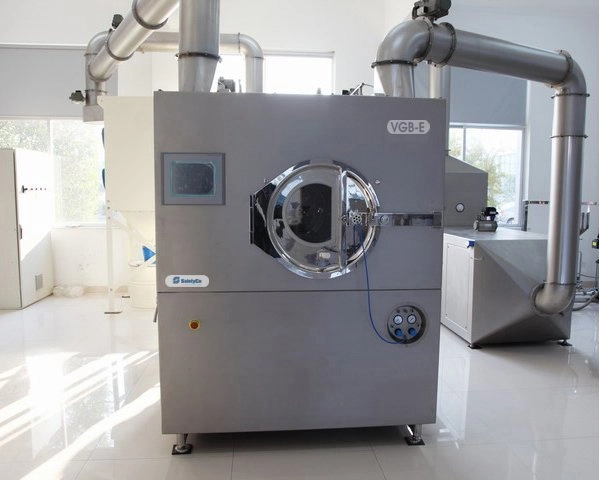

VGB-E Series Revestidora de Comprimidos
VGB-E Series Film Coating Machine — equipamento farmacêutico da SaintyCo com suporte técnico especializado no Brasil.
Principais Características

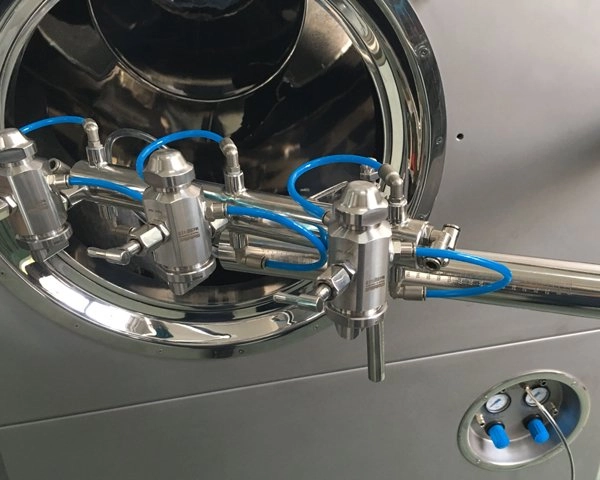

- Fully automated coating drum & spraying system
- Guarantees an even and rapid coating
- Sistema PLC com IHM integrado
- Saves coating material
- Expect Outstanding Equipment Installations, Support and Training from the SaintyCo’s Field Technical Services Team.
- Suporte Técnico Brasileiro
- Qualificação Especializada Brasileira
Detalhes do Produto
| Item | Descrição |
|---|---|
| Main Technical Specifications | VGB-40E |
| Capacidade | 40 |
| Coating Pan Diameter | Ø 850 |
| Coating Pan Depth (mm) | 705 |
| Coating Pan Opening Diameter (mm) | Ø 380 |
| Coating Pan Rotation (rpm) | 4 – 23 |
| Motor of Main Machine (kW) | 0.75 |
| Motor of Hot Air Cabinet (kW) | 1.1 |
| Motor of Exhaust machine (kW) | 3 |

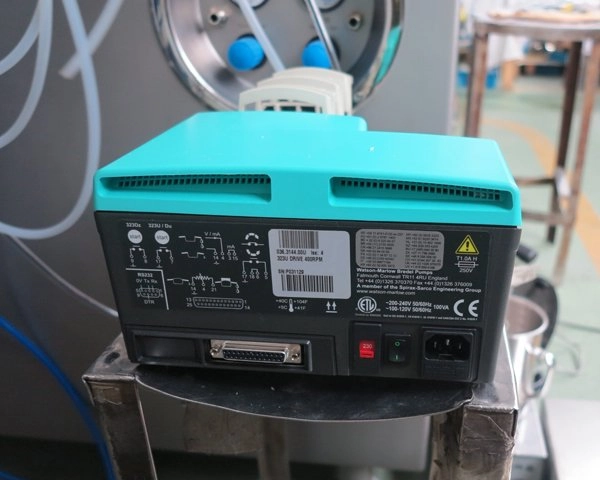

| Motor of Peristaltic Pump (kW) | 0.18 |
| Volume of the Solution Tank (L)/max (L) | 40/55 |
| Capacidade | 2000-2500 |
| Number of Spray Gun | 2 |
| Dimensão | 1120 x880 x 1715 |
| Dimensão | 1100 x 900 x 2340 |
| Dimensão | 780 x 720 x 1950 |
| Peso | 650 |
| Peso | 200 |
| Peso | 250 |
| Power of hot air unit electric heating system(Kw) | 20 |
| Steam | Pressure |
| Air Consumption | 80 kg/min |
