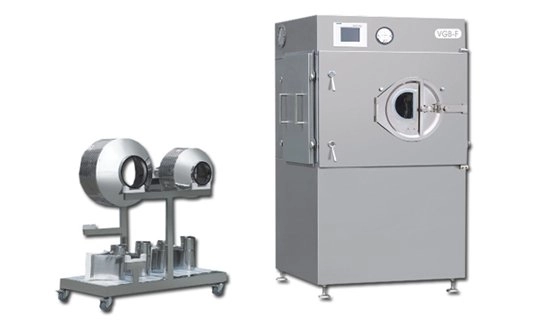

VGB-F Revestidora de Comprimidos Laboratorial
VGB-F Lab Tablet Coater — equipamento farmacêutico da SaintyCo com suporte técnico especializado no Brasil.
Principais Características
- Coats both Western and traditional Chinese tablets
- Sistema PLC com IHM integrado
- Dust and emission free operation
- Suitable for drug development labs
- Function of integrated design
- Control and display the negative pressure in coating pan
- Display air pressure of the supply air of HEPA filter
- Control and display the temperature
- Control and adjust the atomization surface of slurry
- Control the program of spray gun and atomization
- Design of gun clearing and anti-blocking
- Designed the functions of memory and printing
- Designed the functions of replaceable rotary drum
- Designed the functions of impulse and dust removing.
- Suporte Técnico Brasileiro
- Qualificação Especializada Brasileira
Detalhes do Produto
| Item | Descrição |
|---|---|
| Main Technical Specifications | VGB-10F |
| Capacidade | 3/5/10 |
| Coating Pan Diameter | Ø 500/ Ø 520 Ø 610 |
| Coating Pan Depth (mm) | 320/ 360 490 |
| Coating Pan Opening Diameter (mm) | Ø 380 |
| Coating Pan Rotation (rpm) | 6 – 30 |
| Motor of Main Machine (kW) | 0.55 |
| Motor of Hot Air Cabinet (kW) | 0.75 |
| Motor of Exhaust machine (kW) | 2.2 |
| Motor of Peristaltic Pump (kW) | 0.18 |
| Volume of the Solution Tank (L)/max (L) | 10/20 |
| Capacidade | 1000-1500 |
| Number of Spray Gun | 1 |
| Dimensão | 970 x 910 x 1800 |
| Dimensão | 700 x 700 x 2140 |
| Dimensão | 650 x 600 x 1830 |
| Peso | 350 |
| Peso | 250 |
| Peso | 200 |
| Power of hot air unit electric heating system(Kw) | 10 |
| Pressão | ＞0.4Mpa |
